Numerical investigation of the supersonic intake

JAXA Supercomputer System Annual Report April 2020-March 2021

Report Number: R20ETET10

Subject Category: Skills Acquisition System

Responsible Representative: Takashi Aoyama, Aeronautical Technology Directorate, Numerical Simulation Research Unit
Contact Information: Manami Fujii(m-fujii@moegi.waseda.jp)
Members: Manami Fujii

Abstract

JAXA and universities have been forwarding a plan to realize a hypersonic passenger airplane. As the first stage to actualize this plan, a flight experiment called HIMICO (High-Mach Integrated Control Experiment) is being planned to actualize the integrated control technologies of the airframe and the engine. In this experiment, the performance of the ramjet engine is important for the stable flight. Therefore, we investigate the performance of the intake of the ramjet engine aiming at the stable operation.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

The flow inside the intake is complex and its calculation cost is large. However, it became possible to grasp the performance of the intake under various conditions and the characteristics of the unsteady phenomenon by using JAXA Supercomputer System.

Achievements of the Year

We investigated the effect of the angle of attack on the performance of the intake aiming at the stable operation of the ramjet engine in High-Mach Integrated Control Experiment, HIMICO. The ramjet engine for HIMICO is shown in Fig.1. As a result of simulating the performance of the intake with -2.5 deg, 0 deg and +2.5 deg angles of attack, it was found that mass capture ratio (MCR) and total pressure recovery (TPR) become larger as shown in Fig. 2 when the angle of attack is positive. This is the same tendency with the results of the theoretical calculation (TFD) supposing the inviscid flow. Also, the results of CFD showed that the transition to the buzz is delayed when angle of attack is positive and this is contrary to the results of theoretical calculation. The cause of this difference is thought to be the existence of the pseudo-shock wave shown in Fig.3. It was found that the total pressure loss in the low-speed region due to the pseudo-shock wave make TPR small. Therefore, modeling the total pressure loss caused by pseudo-shock wave is thought to be the next step to the more accurate theoretical estimation.

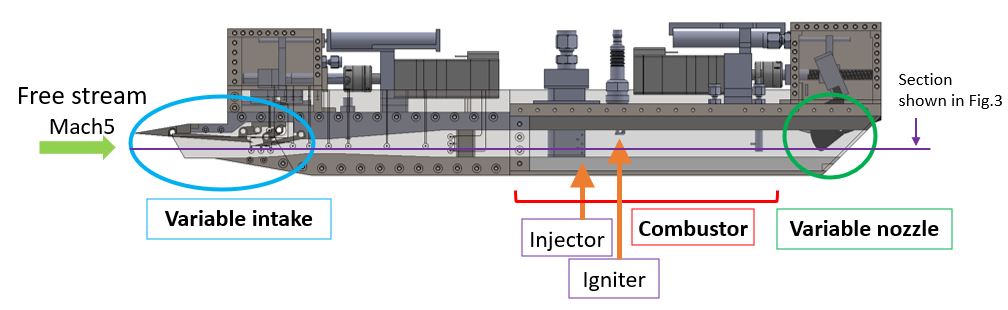

Fig.1: Ramjet engine for HIMICO

Fig.2: MCR-TPR map

Fig.3: Gradient of density inside the engine
