System Configuration of JSS2
The following figure is the overview of JSS2 system configuration.

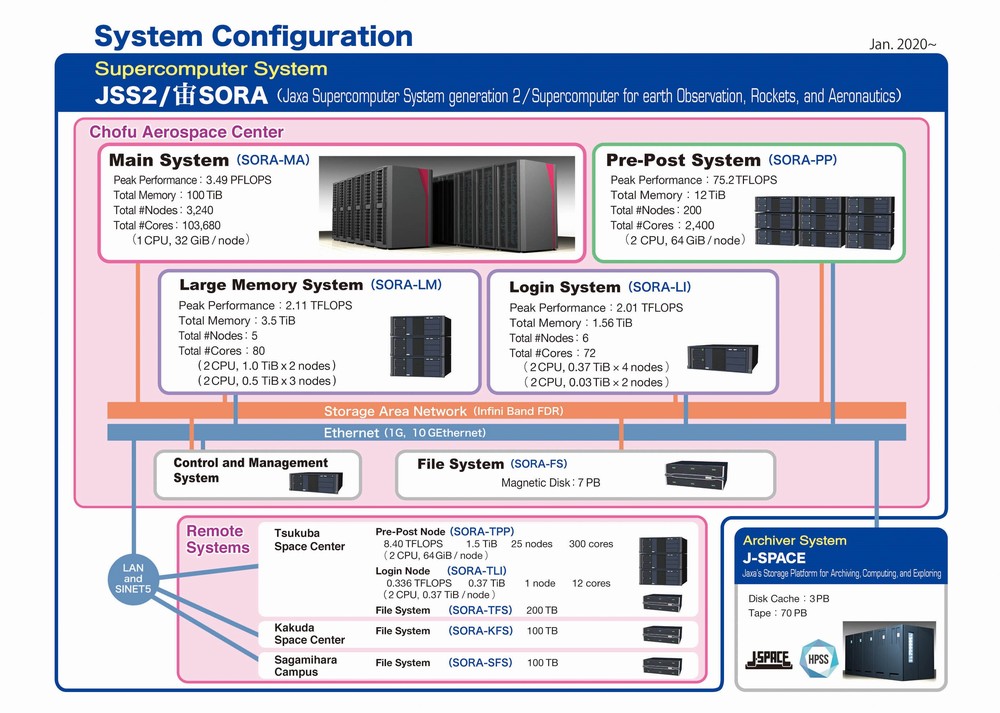

Configuration Overview of JSS2 System
(Click the image above to enlarge. Use "back" of the browser to return.)
| System name | Main System (SORA-MA) |
Pre-Post System (SORA-PP) |
Large Memory System (SORA-LM) |
Tsukuba Pre-Post System (SORA-TPP) |
|---|---|---|---|---|
| Model name | Fujitsu FX100 | Fujitsu RX350 S8 | Fujitsu RX350 S8 | Fujitsu RX350 S8 |
| Total #nodes | 3,240 | 200 | 5 | 25 |
| Theoretical peak performance |
3.49PFLOPS | 75.2TFLOPS | 2.11TFLOPS | 8.40TFLOPS |
| #cores/CPU | 32 | 6 | 8 | 6 |
| #CPUs/node | 1 | 2 | 2 | 2 |
| Memory size/node | 32GB | 64GB | 1024/512GB | 64GB |
