Application of the Cartesian grid and an IB method to the analysis of aircraft engine combustors

JAXA Supercomputer System Annual Report February 2023-January 2024

Report Number: R23EDA102G31

Subject Category: Aeronautical Technology

Responsible Representative: Daisuke Nambu,
Contact Information: Taisuke Nambu, Aviation Technology Directorate, Aircraft Lifecycle Innovation Hub(nambu.taisuke@jaxa.jp)
Members: Dan Hori, Manabu Hisida, Ryohei Kirihara, Takuya Karatsu, Takuhito Kuwabara, Yasuhiro Mizobuchi, Taisuke Nambu, Kei Shimura, Hiroki Yao, Satoshi Atsuchi, Naoki Tani

Abstract

Enabling to conduct numerical analysis of thermal fluid phenomena within aircraft engine combustors using HINOCA-AE ensuring reasonable TAT (Turn Around Time) and accuracy, the potential for expanding the application of numerical analysis to combustor design is explored.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

Massive-parallel large scale simulation, Large number of simulations for software validation

Achievements of the Year

Combustion analysis using a solver employing orthogonal grids and the Immersed Boundary method was conducted for a realistic scale combustor. Challenges for achieving practical CFD simulations for combustor design with reasonable TAT and accuracy were extracted.

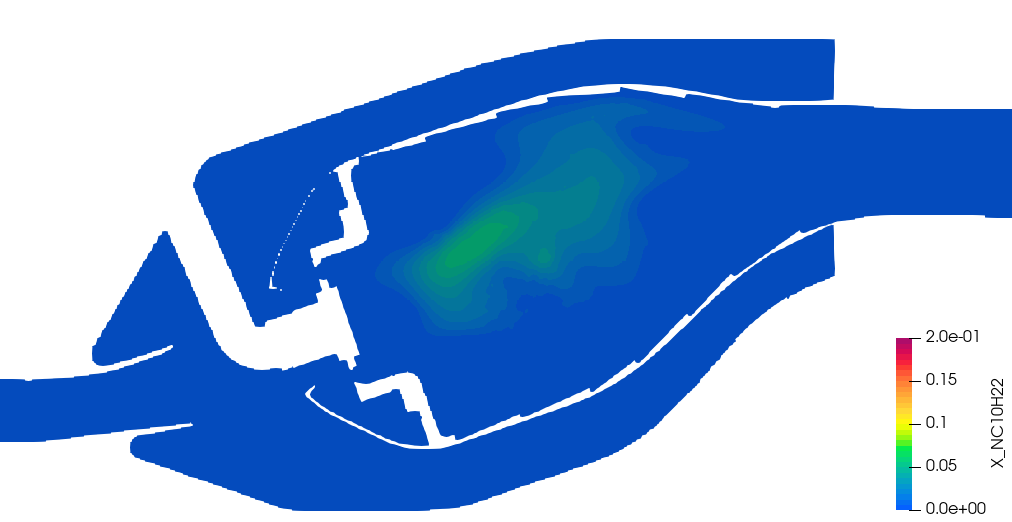

Fig.1: Time averaged fuel mole fraction

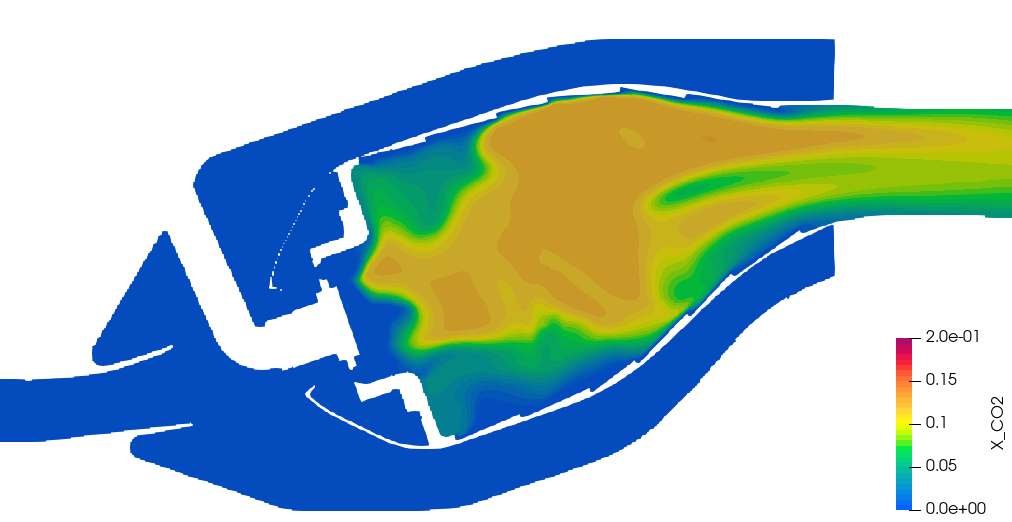

Fig.2: Time averaged CO2 mole fraction

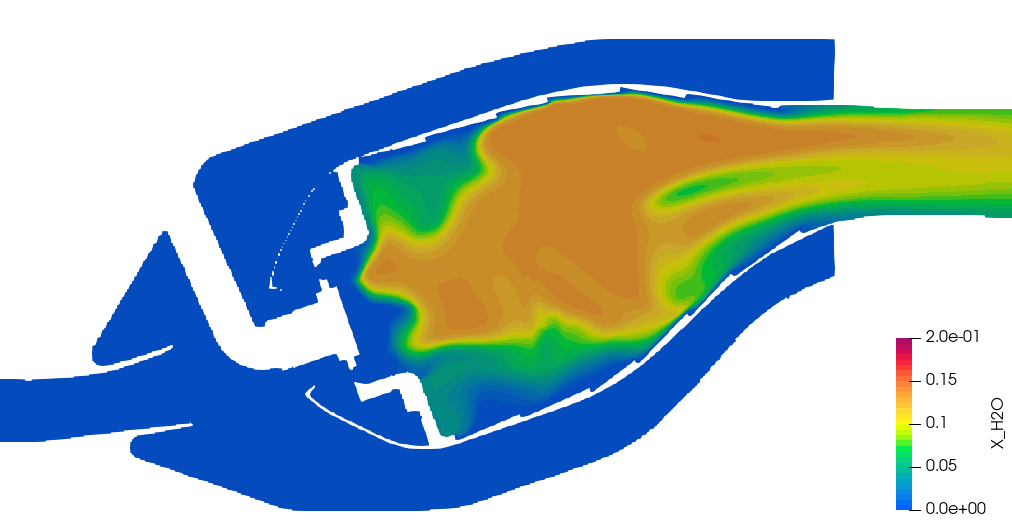

Fig.3: Time averaged H2O mole fraction

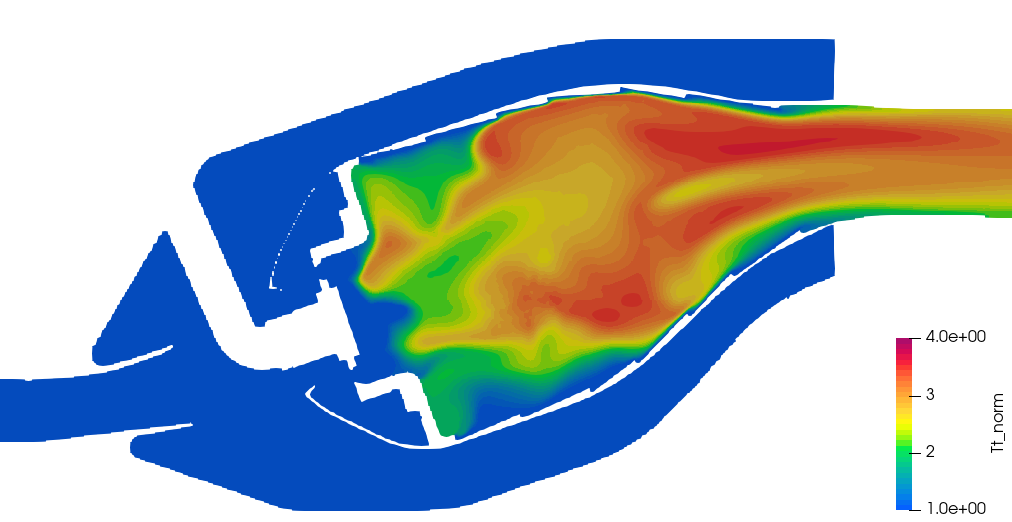

Fig.4: Time averaged total temperature(Non-dimensional)
