Study of high speed fluid dynamics

JAXA Supercomputer System Annual Report February 2022-January 2023

Report Number: R22EU0902

Subject Category: Space and Astronautical Science

PDF available here

  • Responsible Representative: Akira Oyama, Associate Professor, Institute of Space and Astronautical Science, JAXA
  • Contact Information: oyama@flab.isas.jaxa.jp(oyama@flab.isas.jaxa.jp)
  • Members: Shota Taniguchi, Naruhiko Nimura, Kento Kaneko, Kei Toko, Hodaka Mori, Sakura Endo, Takeshi Sawada, Atsuhi Shinoduka

Abstract

To conduct fundamental research on high-speed fluid dynamics such as aerodynamic design of Mars drones

Reference URL

Please refer to ‘Akira Oyama Laboratory of Aerodynamics and Design in Space Engineering‘.

Reasons and benefits of using JAXA Supercomputer System

High-fidelity flow simulations such as the large eddy simulations are required to analyze Mars drones.

Achievements of the Year

A CFD analysis was performed on the flow around a propeller and fixed-wing to obtain design guidelines for the propeller layout of electric aircraft, such as a Mars exploration aircraft. The height of the propeller mounted on the wingtip of the fixed-wing was shifted up and down by 15% of its diameter to clarify the effect on the aerodynamic characteristics of the fixed-wing (Fig.1). Numerical results show that the upper-mounted propeller configuration has highest cruise aerodynamic characteristics when only considering the aerodynamic characteristics of the fixed-wing (Fig.2).

To study surface riblet processing as a friction reduction technology for space transport vehicles, computational fluid dynamics simulations was also conducted. The result show that the behavior of riblets in laminar flow does not depend qualitatively on the Mach number. On the other hand, the rate of change of the friction coefficient decreased by about 4% in the transonic region compared to the subsonic region. Based on this result, it was found that it is desirable to design appropriately under transonic flow conditions when considering the practical application of surface riblet processing to space transport vehicles in the future.

Annual Reoprt Figures for 2022

Fig.1: Flowfield around propeller and fixed-wing



Annual Reoprt Figures for 2022

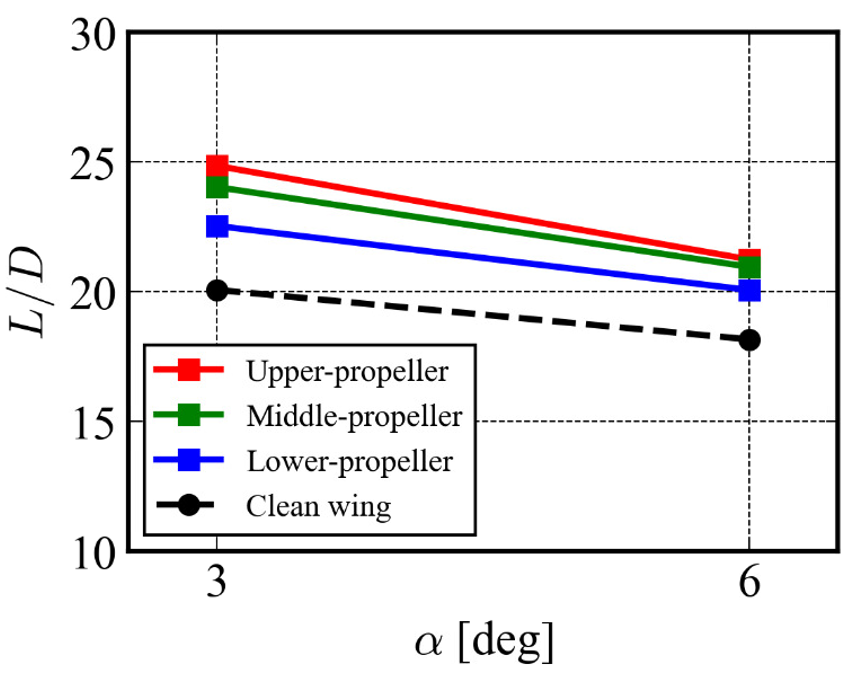

Fig.2: Propeller vertical position effect on the lift-to-drag ratio of the fixed-wing



Annual Reoprt Figures for 2022

Fig.3: Surface friction coefficient distribution on the riblet surface (subsonic)



Publications

– Oral Presentations

Shota Taniguchi, Akira Oyama, Propeller Vertical Position Effect on Aerodynamics of Wing, ACFD 2022, Korean Society for Computational Fluids Engineering, October 16-19, 2022

Shota Taniguchi, Akira Oyama, Effects of multiple propellers on aerodynamic characteristics of fixed-wing, AIAA AVIATION Forum 2022, American Institute of Aeronautics and Astronautics, June 27-July 1, 2022
