Effect of Nosecone-length on Aerodynamic Characteristics of Slender Body

JAXA Supercomputer System Annual Report February 2021-January 2022

Report Number: R21EACA21

Subject Category: JSS Inter-University Research

PDF available here

  • Responsible Representative: Keiichi Kitamura, Associate Professor, Yokohama National University
  • Contact Information: Hirokazu Kuirhara (Yokohama National University)(kurihara-hirokazu-nw@ynu.jp)
  • Members: Hirokazu Kurihara, Keiichi Kitamura, Shogo Motoki

Abstract

In the case of the nose-entry system on vertical-takeoff-and-landing type reusable rockets, this rocket needs a turnover maneuver by using its pitching moment, during return flight. In this study, the effects of three types of slender body with different nosecone-length on pitching moment characteristics and the flow field around the slender body are investigated by numerical analysis. From this study, it was found that Cm (pitching-moment coefficient) increases linearly with the angle of attack in all the configurations with different nosecone-length. Also, in the range of angle of attack from 0 to 20 degrees, as the nosecone-length of the vehicle increases, Cm decreases. These result from flow stagnation and accelerated expansion.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

In this study, there were many configurations and angles of attack to be calculated, and the number of grid points was large. Because of this, it was necessary to use the supercomputer that can calculate efficiently and accurately.

Achievements of the Year

Numerical analysis was performed on three types of slender bodies (Fig. 1) with different nosecone-lengths in the range of angle of attack from 0 to 20 degrees. As a result, it was found that Cm increases linearly with the angle of attack in all the configurations with different nosecone-lengths. In addition, the pitching moments of all the configurations were always positive, but the slender body having the longest nosecone for 150 mm showed the smallest value (Fig. 2). In particular, the shorter the nosecone-length, the larger the positive pitching moment that occurs around the nosecone. This difference was caused by the difference in the stagnation area on the windward side of the nosecone. On the other hand, the negative pitching moment generated behind the moment reference center of the slender body became large (Fig. 3). This is thought to be due to the difference in the number of experiences of accelerated expansion of the flow. In addition, the positive pitching moment generated around the nosecone by stagnation was dominant for the pitching moment of the entire slender body (Fig. 4).

Annual Reoprt Figures for 2021

Fig.1: Configuration



Annual Reoprt Figures for 2021

Fig.2: Pitching moment coefficient of three different configurations vs angle-of-attack



Annual Reoprt Figures for 2021

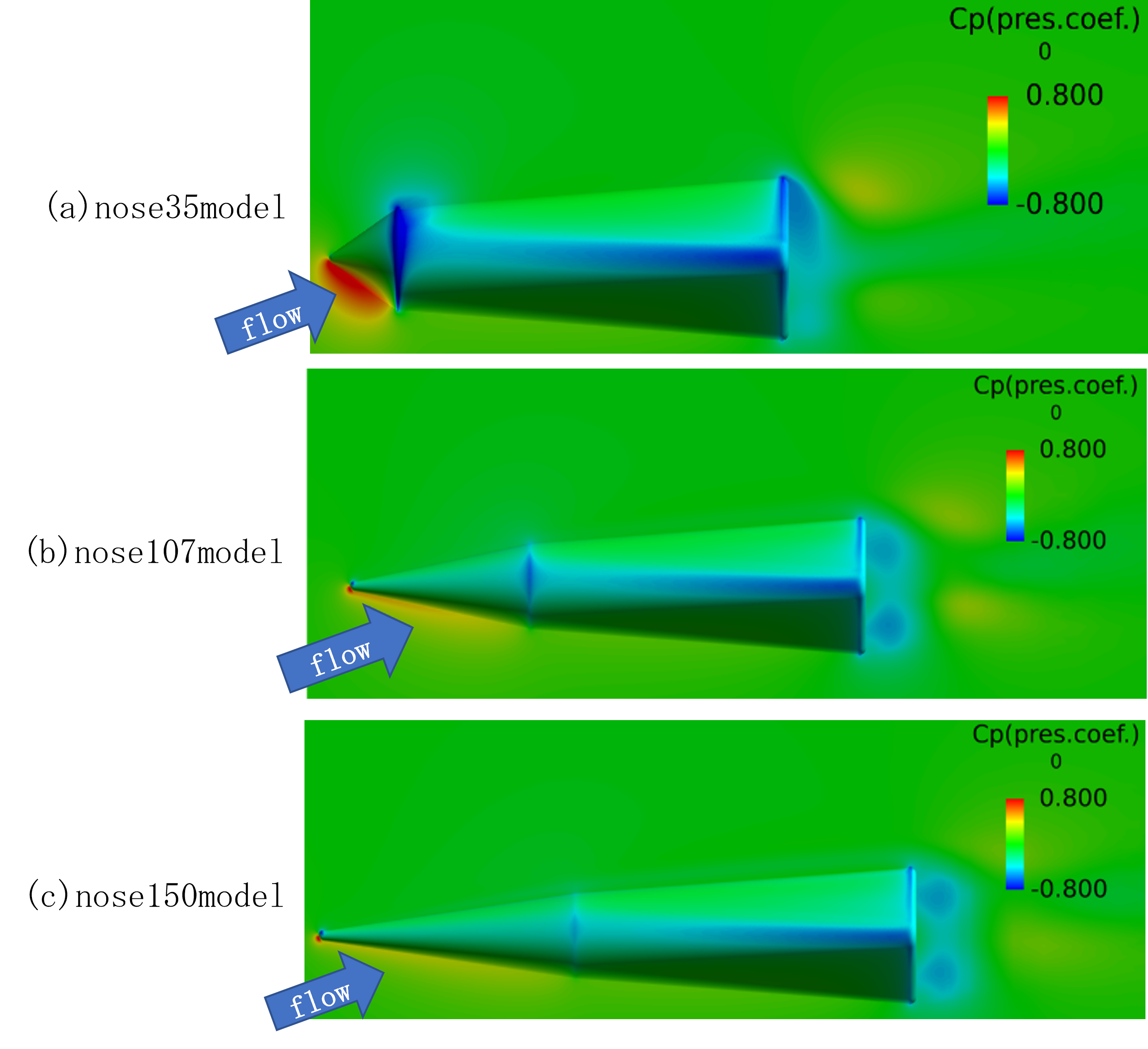

Fig.3: Cp distribution (AoA=20[deg.])



Annual Reoprt Figures for 2021

Fig.4: Local Pitching moment coefficient (AoA=20[deg.])



Publications

N/A
