Fundamental numerical analysis on propagation of detonation waves
JAXA Supercomputer System Annual Report February 2021-January 2022
Report Number: R21EACA45
Subject Category: JSS Inter-University Research
- Responsible Representative: Toshiharu Mizukaki, Professor, Tokai University
- Contact Information: Toshiharu Mizukaki, Professor, Tokai University(mzkk@tsc.u-tokai.ac.jp)
- Members: Toshiharu Mizukaki, Faming Wang
Abstract
Detonation waves are sel- propagated waves assisted by shock waves. Utilizing the detonation waves would rialize high-efficiency propulsion system. The pourpose of this project is to establish numerical analysy method for detonation characteristics obtained by experiments.
Reference URL
Please refer to https://www.mzkklab.com/ .
Reasons and benefits of using JAXA Supercomputer System
This project needed supersonic combustion analysis code. The CHARIOT, supersonic combustion code developed my JAXA, is installed on JSS3. Also, JSS3 provides optimized enviloment for using the CHARIOT.
Achievements of the Year
1) As a basic analysis of detonation wave propagation, we analyzed the cell structure of detonation waves with an ethylene / oxygen mixture gas (Fig. 1). The cell width decreases with incrresing of the initial pressure ratio. We also compared dependence of mesh on the analysis results. From the obtained results, the grid width to be used for future analysis was determined.
2) Detonation wave propagation mode inside the linear combustor used for detailed study of the detonation wave structure inside the detonation engine combustor, premixed air (Fig. 2) and non-premixed air conditioner (Fig. 3). Was analyzed and the propagation characteristics were clarified.

Fig.1: Detonation cell structure with ethylene/oxygen mixture gas with varied initial pressure and mesh interval.

Fig.2: Propagation of detonation waves inside a linear combuster for fundametal study on rotating detonation combuster (ethylene/oxygen premixture gas).

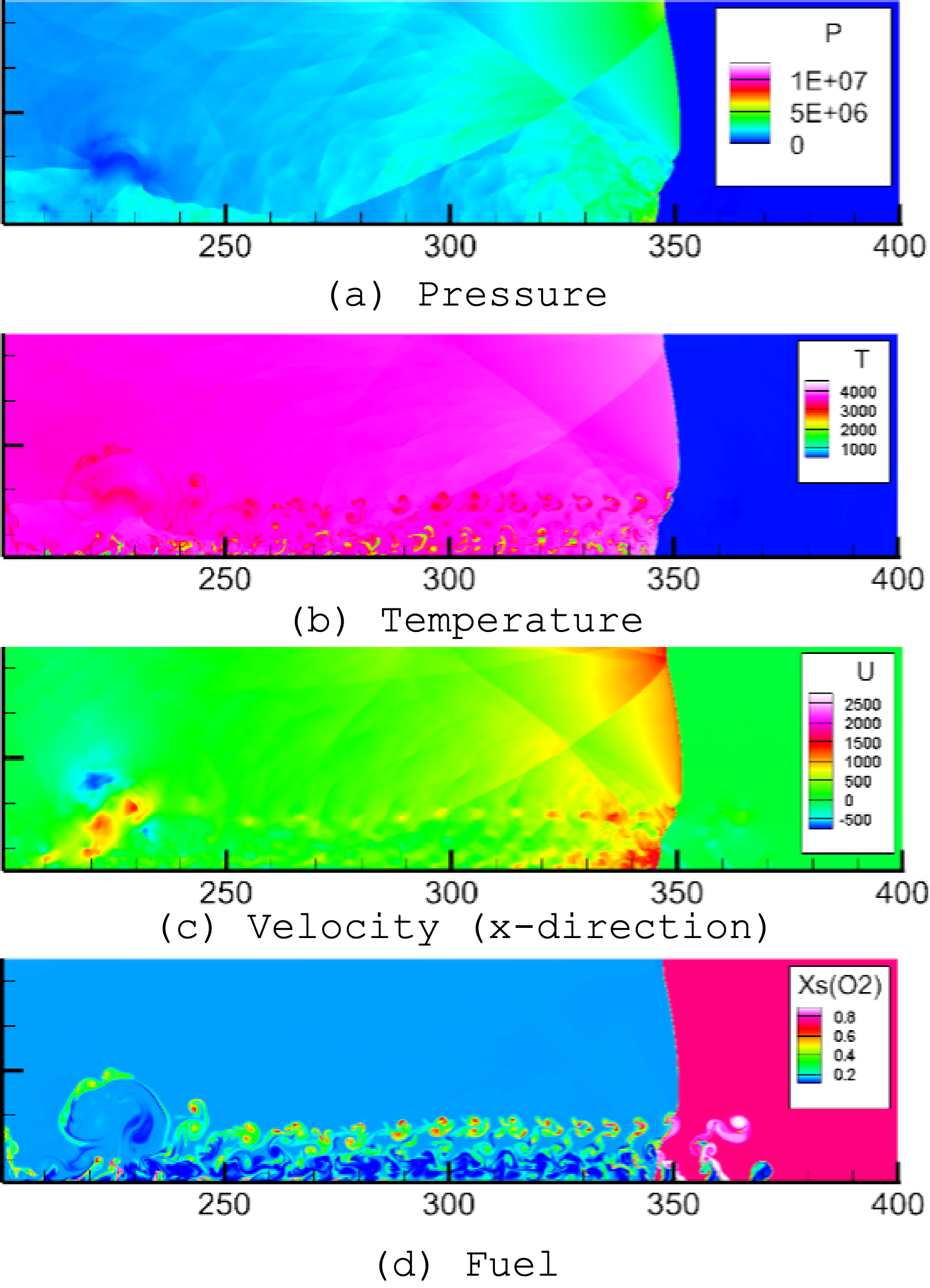

Fig.3: Propagation of detonation waves inside a linear combuster for fundametal study on rotating detonation combuster (ethylene/oxygen non-premixture gas).
Publications
– Peer-reviewed papers
Faming Wang, Toshiharu Mizukaki and Shingo Matsuyama, Visualization and CFD of the influence of mixing on detonation wave propagation inside a rotating-detonation engine by using linear detonation channel, AIAA 2022-1456,(2022)
– Oral Presentations
Faming Wang, Toshiharu Mizukaki, Numerical analysis of detonation wave propagation inside RDE: Propagation of Detonation Wave plunging entry the fuel Jet train, Paper No. 3B1-3, FY2021 Symposium on Shock Waves in Japan (2022)
Usage of JSS
Computational Information
- Process Parallelization Methods: MPI
- Thread Parallelization Methods: OpenMP
- Number of Processes: 8 – 12
- Elapsed Time per Case: 72 Hour(s)
JSS3 Resources Used
Fraction of Usage in Total Resources*1(%): 0.15
Details
Please refer to System Configuration of JSS3 for the system configuration and major specifications of JSS3.
System Name | CPU Resources Used(Core x Hours) | Fraction of Usage*2(%) |
---|---|---|
TOKI-SORA | 3553716.27 | 0.17 |
TOKI-ST | 49.04 | 0.00 |
TOKI-GP | 0.00 | 0.00 |
TOKI-XM | 0.00 | 0.00 |
TOKI-LM | 0.00 | 0.00 |
TOKI-TST | 0.00 | 0.00 |
TOKI-TGP | 0.00 | 0.00 |
TOKI-TLM | 0.00 | 0.00 |
File System Name | Storage Assigned(GiB) | Fraction of Usage*2(%) |
---|---|---|
/home | 260.00 | 0.26 |
/data and /data2 | 5220.00 | 0.06 |
/ssd | 150.00 | 0.04 |
Archiver Name | Storage Used(TiB) | Fraction of Usage*2(%) |
---|---|---|
J-SPACE | 0.00 | 0.00 |
*1: Fraction of Usage in Total Resources: Weighted average of three resource types (Computing, File System, and Archiver).
*2: Fraction of Usage:Percentage of usage relative to each resource used in one year.
ISV Software Licenses Used
ISV Software Licenses Used(Hours) | Fraction of Usage*2(%) | |
---|---|---|
ISV Software Licenses(Total) | 0.00 | 0.00 |
*2: Fraction of Usage:Percentage of usage relative to each resource used in one year.
