Research on Airframe-Proplusion Integration Design Technology
JAXA Supercomputer System Annual Report February 2024-January 2025
Report Number: R24EA0602
Subject Category: Aeronautical Technology
- Responsible Representative: Junichi Kazawa, Aviation Enviromental Sustanability Innovation Hub, Aviation Technology Directorate
- Contact Information: Mitsuhiro Murayama, Aviation Environmental Sustainability Innovation Hub, Aviation Technology Directorate(murayama.mitsuhiro@jaxa.jp)
- Members: Ryutaro Furuya, Tomoaki Ikeda, Yasushi Ito, Fumitake Kuroda, Keisuke Ohira, Yuki Kishi, Dongyoun Kwak, Mitsuhiro Murayama, Keiji Ueshima
Abstract
The purpose of the research is to obtain airframe-proplusion integration design technology to enable airframe design with higher environmental performances of future aircraft application.
Reference URL
N/A
Reasons and benefits of using JAXA Supercomputer System
To obtain airframe-proplusion integration design technology to enable airframe design with higher environmental performances of future aircraft application, CFD-based design/analyis have been conducted in this research. The high-fidelity CFD analysis of the whole aircraft configurations with the airframe-engine installation requires large computational resources. JSS enables the high-fidelity evaluations of the peformance in a timely manner and the technology developments.
Achievements of the Year
Based on specifications from the conceptual design for a 220-seat BWB with hydrogen-electric distributed engines, the wing-body design was performed. A BWB wing-body configuration that achieves the target lift distribution was successfully obtained.

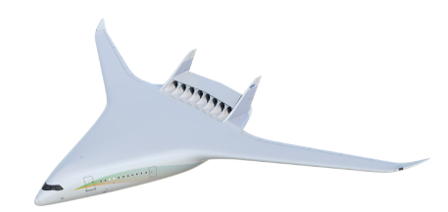

Fig.1: Image of 220-seat BWB with hydrogen-electric distributed engines
Publications
N/A
Usage of JSS
Computational Information
- Process Parallelization Methods: MPI
- Thread Parallelization Methods: N/A
- Number of Processes: 2880
- Elapsed Time per Case: 10 Hour(s)
JSS3 Resources Used
Fraction of Usage in Total Resources*1(%): 0.20
Details
Please refer to System Configuration of JSS3 for the system configuration and major specifications of JSS3.
| System Name | CPU Resources Used(Core x Hours) | Fraction of Usage*2(%) |
|---|---|---|
| TOKI-SORA | 5337373.28 | 0.24 |
| TOKI-ST | 5278.44 | 0.01 |
| TOKI-GP | 0.00 | 0.00 |
| TOKI-XM | 0.00 | 0.00 |
| TOKI-LM | 841.57 | 0.06 |
| TOKI-TST | 0.00 | 0.00 |
| TOKI-TGP | 0.00 | 0.00 |
| TOKI-TLM | 0.00 | 0.00 |
| File System Name | Storage Assigned(GiB) | Fraction of Usage*2(%) |
|---|---|---|
| /home | 196.27 | 0.13 |
| /data and /data2 | 22352.43 | 0.11 |
| /ssd | 2091.67 | 0.11 |
| Archiver Name | Storage Used(TiB) | Fraction of Usage*2(%) |
|---|---|---|
| J-SPACE | 14.29 | 0.05 |
*1: Fraction of Usage in Total Resources: Weighted average of three resource types (Computing, File System, and Archiver).
*2: Fraction of Usage：Percentage of usage relative to each resource used in one year.
ISV Software Licenses Used
| ISV Software Licenses Used(Hours) | Fraction of Usage*2(%) | |
|---|---|---|
| ISV Software Licenses(Total) | 45.38 | 0.03 |
*2: Fraction of Usage：Percentage of usage relative to each resource used in one year.
