Orbit Determination Analysis Operation Optimization Tool for Spiral Orbit Raising Phase

JAXA Supercomputer System Annual Report February 2024-January 2025

Report Number: R24EAUB0500

Subject Category: Space and Astronautical Science

PDF available here

  • Responsible Representative: Takeshi Takashima, Project Manager, DESTINY+ project team
  • Contact Information: Takayuki Yamamoto(yamamoto.takayuki@jaxa.jp)
  • Members: Kazuma Fujimoto, Masakazu Iwabuchi, Kotaro Mori, Kota Morizane, Kazuki Takezawa, Sho Taniguchi, Takayuki Yamamoto

Abstract

Perform Monte Carlo simulations of orbit planning and orbit determination operations during the spiral orbit raising phase of DESTINY+.

Reference URL

Please refer to 'DESTINY+'.

Reasons and benefits of using JAXA Supercomputer System

Parallel computation is possible, thus reducing analysis time.

Achievements of the Year

Through Monte Carlo simulations for the orbital planning and orbital determination operations during the spiral orbit ascent phase of DESTINY+, evaluations were conducted on the necessary ground station pass assignments, ground station observation data, capture operation requirements including IES stop conditions and durations, assessment of consistency between longterm and shortterm station adjustments, optimization of parameters for orbit determination, evaluation of the onboard orbit propagation functionality, improvement of pass assignment consistency, and evaluation of the Y-axis inversion control logic. A paper was submitted for the operational design report of the spacecraft, demonstrating the operational feasibility during the spiral orbit ascent phase.

Annual Report Figures for 2024

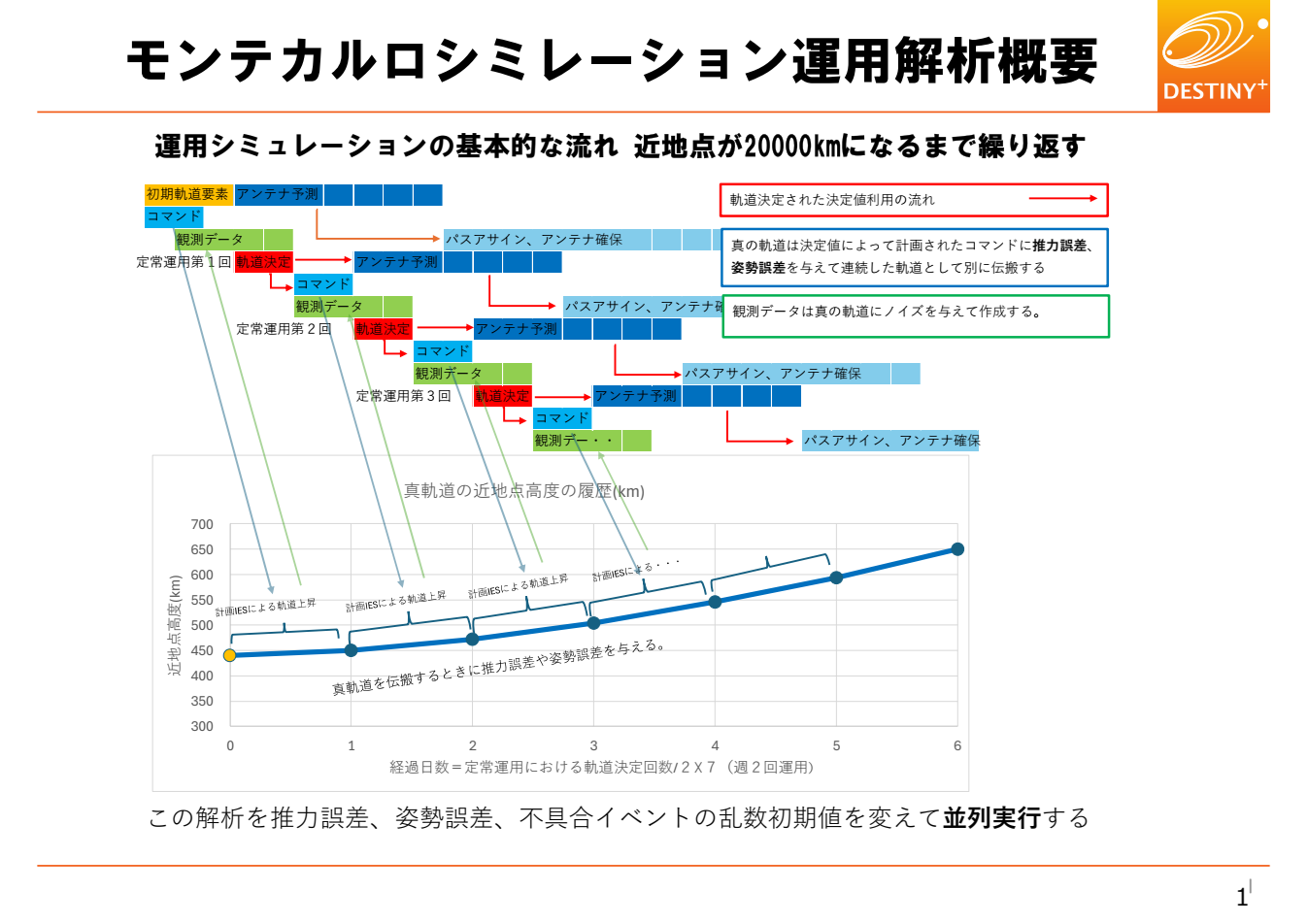

Fig.1: Monte Carlo simulation operational analysis overview



Annual Report Figures for 2024

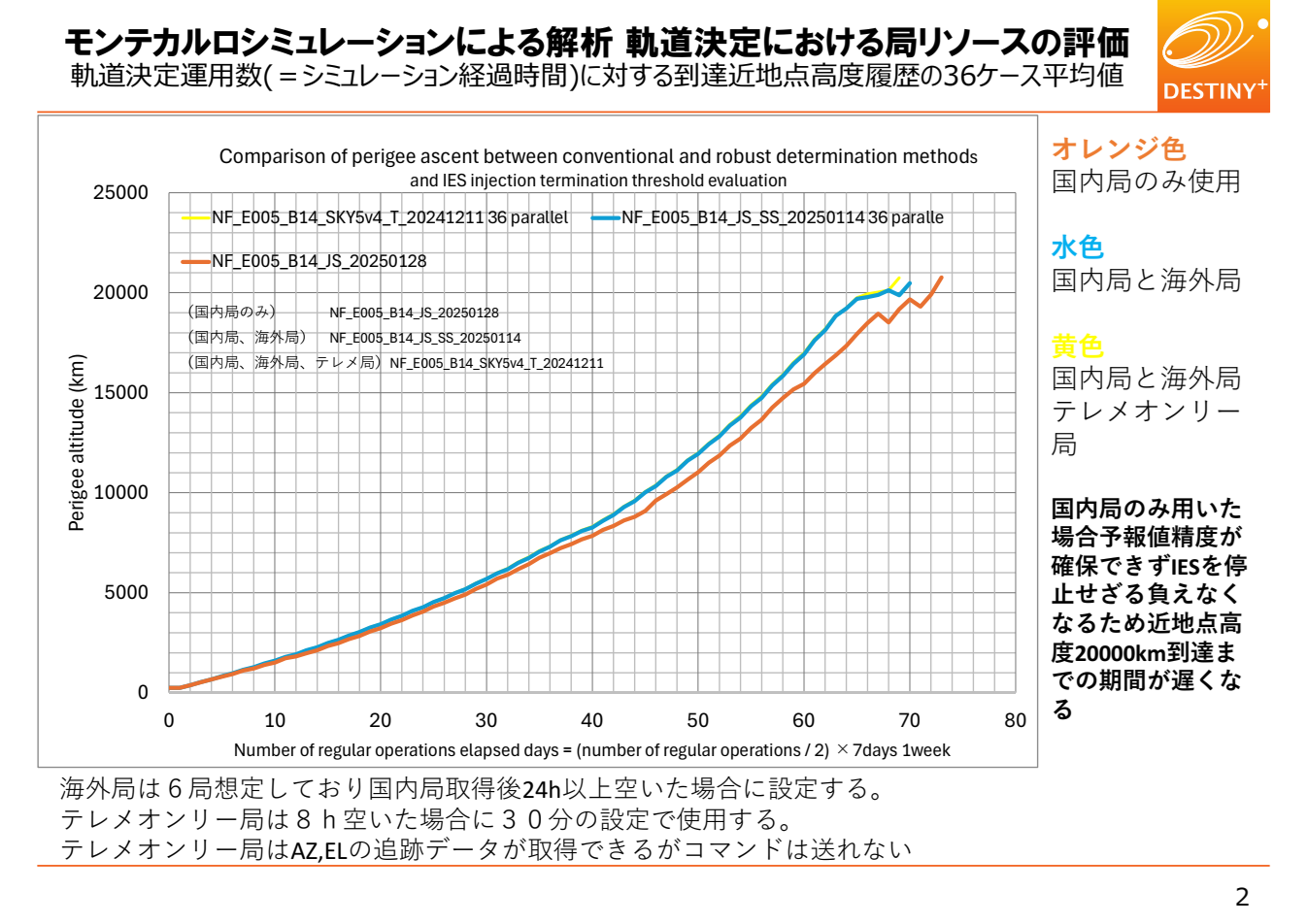

Fig.2: Monte Carlo simulation - Evaluation of station resources in orbit determination



Annual Report Figures for 2024

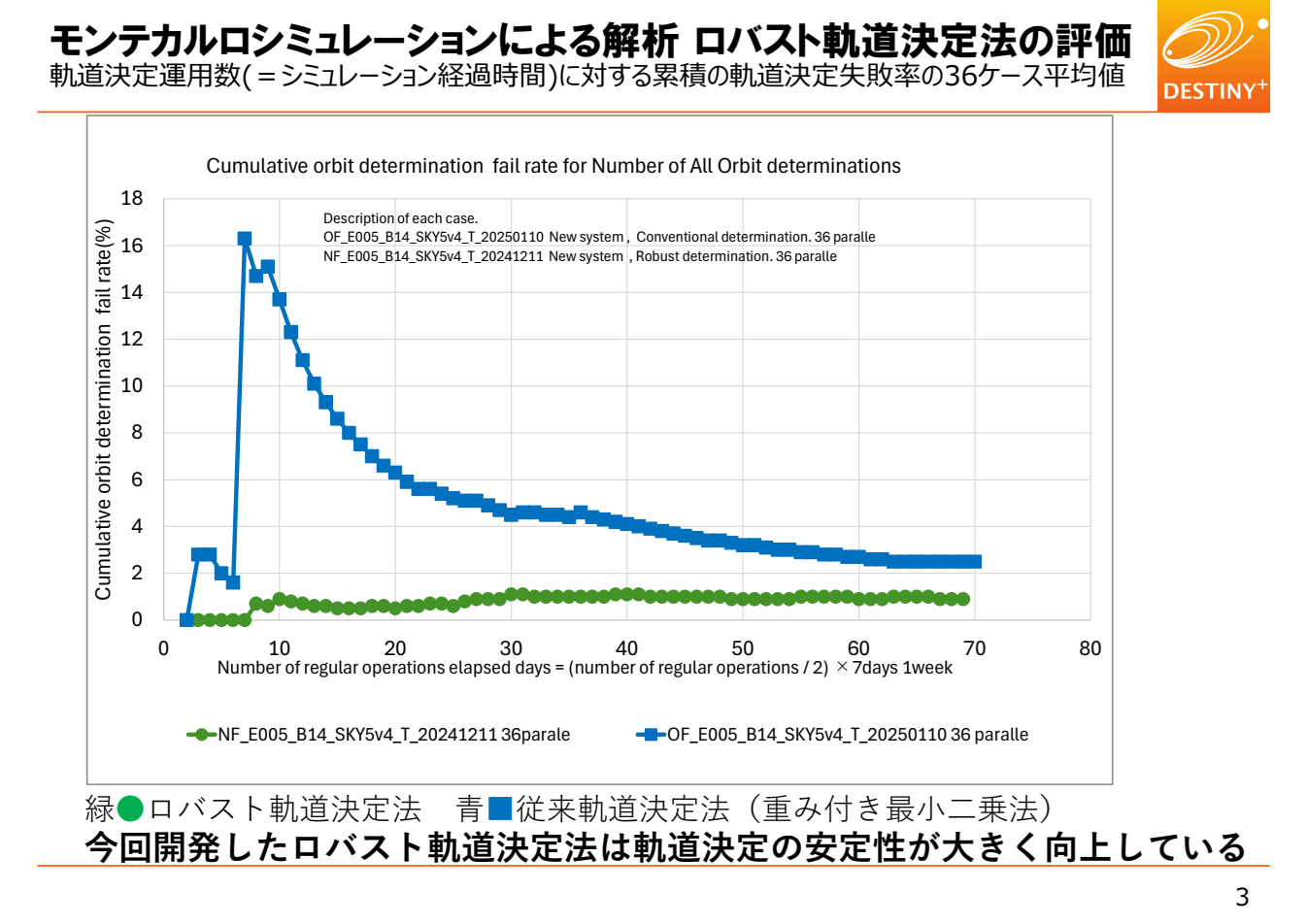

Fig.3: Monte Carlo simulation_Evaluation of robust orbit determination methods



Annual Report Figures for 2024

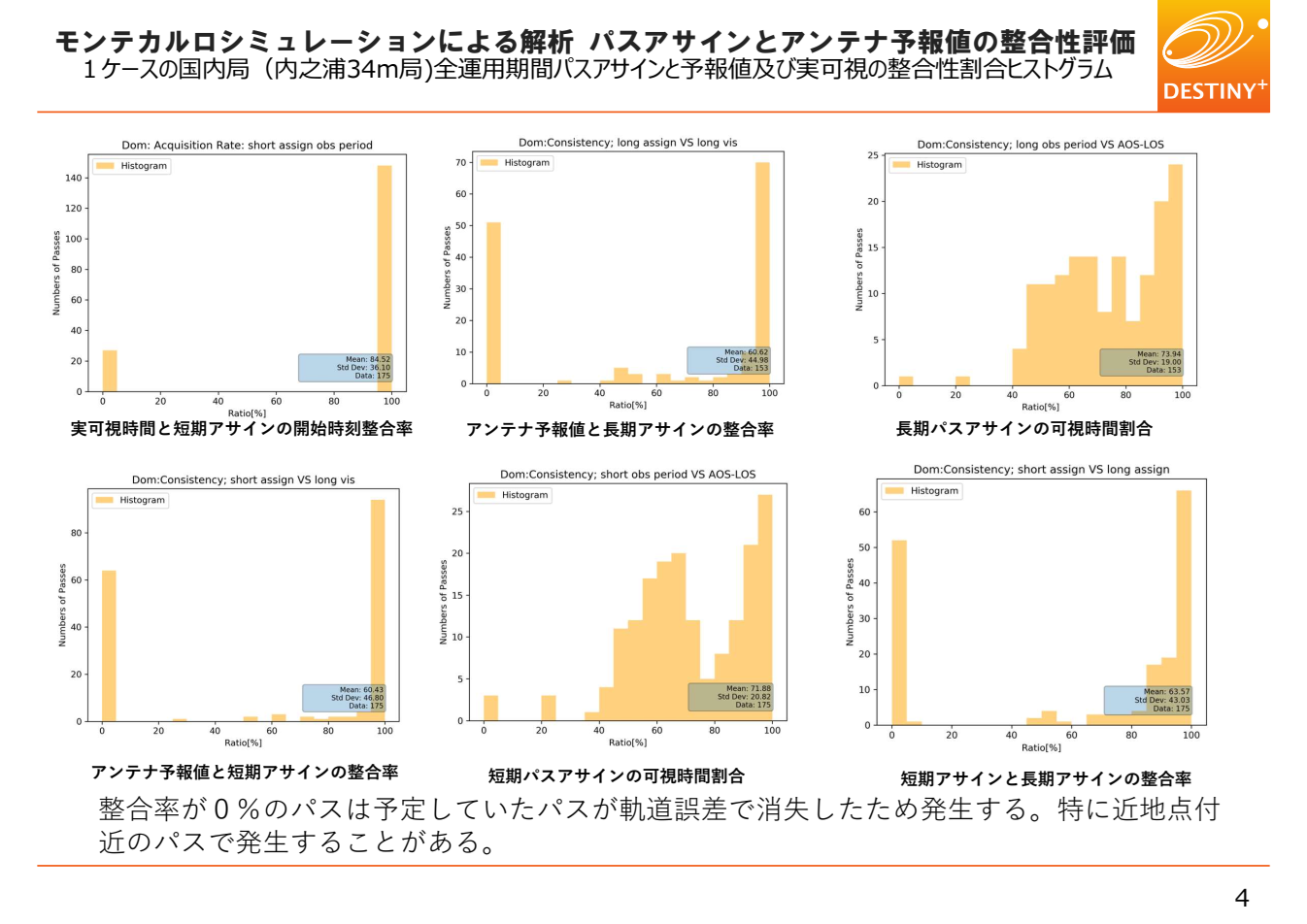

Fig.4: Monte Carlo simulation_Evaluation of consistency between path assignment and antenna forecast values



Publications

- Non peer-reviewed papers

1) S.Taniguchi, T. Yamamoto, T. Ichikawa, Y.Sugimoto, H.Takeuchi, H,Imamura

T.Takashima, Member, JAXA, K,Fujimoto, Member, Fujitsu.Limited, "Stability of Orbital Determination During the Spiral Ascent Phase in DESTINY+", SICE FESTIVAL 2024 with Annual Conference, Kochi.

2) Sho Taniguchi, Takayuki Yamamoto, Tsutomu Ichikawa, Yoshihide Sugimoto, Hiroshi Takeuchi, Hiroshi Imamura, Ken Takashima (JAXA) and Kazuma Fujimoto (Fujitsu Limited) ,"Orbit determination and operational feasibility study for DESTINY plus spiral ascent phase", 4N14, The 68th Japan Society for Aeronautical and Space Sciences (JSASS)

- Oral Presentations

Kazuma Fujimoto (Fujitsu Limited), Takayuki Yamamoto, Hiroshi Takeuchi, Tsutomu Ichikawa, Yoshihide Sugimoto, Hiroshi Imamura, Takeshi Takashima, Sho Taniguchi (JAXA), DESTINY+ Flight Dynamics Operation Analysis for the Spiral Orbit Raising Phase, 34th Workshop on JAXA Astrodynamics and Flight Mechanics

Usage of JSS

Computational Information

  • Process Parallelization Methods: Parallelization in the process control shell
  • Thread Parallelization Methods: N/A
  • Number of Processes: 1 - 108
  • Elapsed Time per Case: 240 Hour(s)

JSS3 Resources Used



Fraction of Usage in Total Resources*1(%): 0.06



Details

Please refer to System Configuration of JSS3 for the system configuration and major specifications of JSS3.

Computational Resources
System Name CPU Resources Used
(Core x Hours)
Fraction of Usage*2(%)
TOKI-SORA 0.00 0.00
TOKI-ST 280944.31 0.29
TOKI-GP 0.00 0.00
TOKI-XM 0.00 0.00
TOKI-LM 0.00 0.00
TOKI-TST 0.00 0.00
TOKI-TGP 0.00 0.00
TOKI-TLM 0.00 0.00



File System Resources
File System Name Storage Assigned
(GiB)
Fraction of Usage*2(%)
/home 1990.00 1.34
/data and /data2 203100.00 0.97
/ssd 15060.00 0.81



Archiver Resources
Archiver Name Storage Used
(TiB)
Fraction of Usage*2(%)
J-SPACE 0.40 0.00

*1: Fraction of Usage in Total Resources: Weighted average of three resource types (Computing, File System, and Archiver).

*2: Fraction of Usage:Percentage of usage relative to each resource used in one year.



ISV Software Licenses Used

ISV Software Licenses Resources
ISV Software Licenses Used
(Hours)
Fraction of Usage*2(%)
ISV Software Licenses
(Total)
0.00 0.00

*2: Fraction of Usage:Percentage of usage relative to each resource used in one year.
