Advanced heat-resistant composite technology/film cooling for aircraft engines

JAXA Supercomputer System Annual Report February 2024-January 2025

Report Number: R24EDA101D11

Subject Category: Aeronautical Technology

Responsible Representative: Atsushi Kanda, Aviation Technology Directorate, Aviation Safety Innovation Hub
Contact Information: Junichi Kazawa, Aviation Technology Directorate, Aviation Safety Innovation Hub(kazawa.junichi@jaxa.jp)
Members: Yasuo Horiguchi, Susumu Kato

Abstract

The predictive accuracy of numerical analysis on turbine cooling will be understood and used to evaluate actual components in jetengine in the material development.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

Since the verification analysis requires a lot of number of cases and requires LES analysis, the calculation scale is large and these analyses can only be performed using JSS3.

Achievements of the Year

Verification was performed using RANS with test data, and it was confirmed that the Mach number distribution on the blade surface was in good agreement with the test results. It was also confirmed that LES analysis of the blade row can be performed.

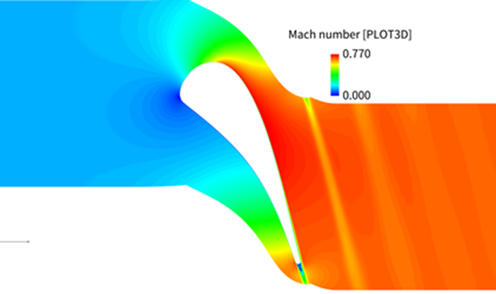

Fig.1: Mach number contrours

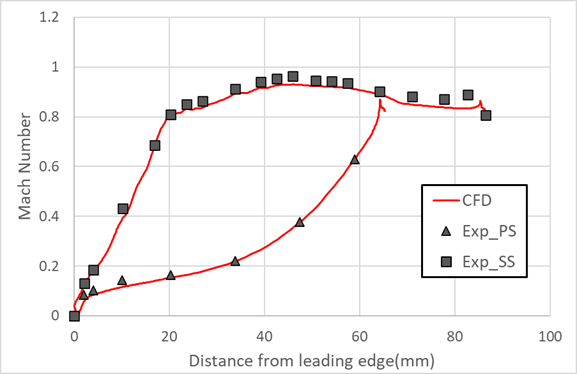

Fig.2: Mach number distribution on the blade surface

Publications

N/A

Usage of JSS

Computational Information

Process Parallelization Methods: MPI
Thread Parallelization Methods: N/A
Number of Processes: 90 - 870
Elapsed Time per Case: 16 Hour(s)

JSS3 Resources Used

Fraction of Usage in Total Resources*1(%): 0.00

Details

Please refer to System Configuration of JSS3 for the system configuration and major specifications of JSS3.

Computational Resources
System Name	CPU Resources Used (Core x Hours)	Fraction of Usage*2(%)
TOKI-SORA	0.00	0.00
TOKI-ST	26145.27	0.03
TOKI-GP	0.00	0.00
TOKI-XM	0.00	0.00
TOKI-LM	0.00	0.00
TOKI-TST	0.00	0.00
TOKI-TGP	0.00	0.00
TOKI-TLM	0.00	0.00

File System Resources
File System Name	Storage Assigned (GiB)	Fraction of Usage*2(%)
/home	49.67	0.03
/data and /data2	6440.67	0.03
/ssd	0.00	0.00

Archiver Resources
Archiver Name	Storage Used (TiB)	Fraction of Usage*2(%)
J-SPACE	0.00	0.00

*1: Fraction of Usage in Total Resources: Weighted average of three resource types (Computing, File System, and Archiver).

*2: Fraction of Usage：Percentage of usage relative to each resource used in one year.

ISV Software Licenses Used

ISV Software Licenses Resources
	ISV Software Licenses Used (Hours)	Fraction of Usage*2(%)
ISV Software Licenses (Total)	30.68	0.02

*2: Fraction of Usage：Percentage of usage relative to each resource used in one year.
