Robust design for Jet Engine/Development of Robust design technology

JAXA Supercomputer System Annual Report February 2024-January 2025

Report Number: R24EDA201C50

Subject Category: Aeronautical Technology

PDF available here

Responsible Representative: Atsushi Kanda, Aviation Technology Directorate, Aviation Environmental Sustainability Innovation Hub
Contact Information: Junichi Kazawa, Aeronautical Technology Directorate, Aviation Environmental Sustainability Innovation Hub(kazawa.junichi@jaxa.jp)
Members: Takashi Ishiyama, Takafumi Kanayama, Masaya Suzuki, Kenshi Yamashita

Abstract

Solve the technical challenges involved in realizing small-core jet engines.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

The calculation domain is the high pressure turbine - strut - low pressure turbine, so the calculation scale is large and the analysis can only be performed using JSS3.

Achievements of the Year

Verifications of cascade flutter were carried out and compared with the test results. A large-scale analyses of the high pressure turbine-strut-low pressure turbine were also carried out, and it was confirmed that a reasonable solution could be obtained.

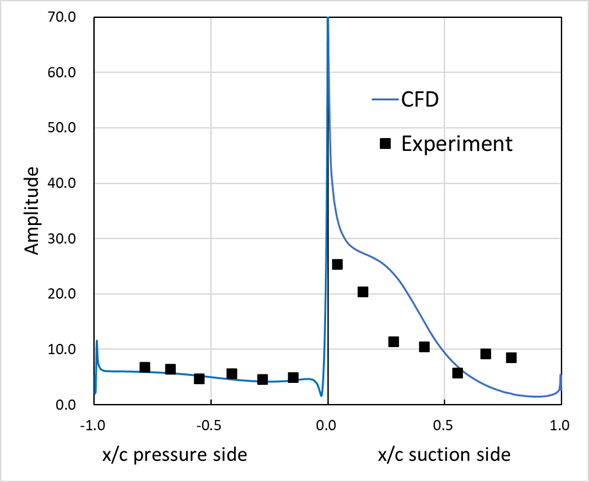

Fig.1: Unsteady pressure distribution on the blade surface in cascade flutter analysis (amplitude)

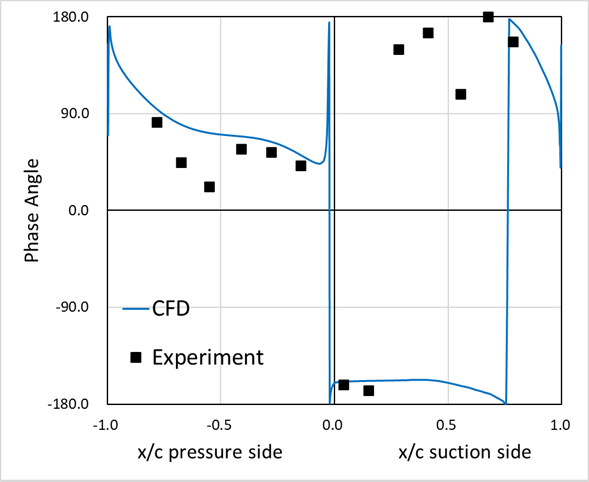

Fig.2: Unsteady pressure distribution on the blade surface in cascade flutter analysis (phase)
