Research and Development of Hydrogen Fueled Future Space Transportation Systems

JAXA Supercomputer System Annual Report February 2024-January 2025

Report Number: R24EDG10105

Subject Category: Research and Development

Responsible Representative: Hideaki Nanri, Director, Research and Development Directorate, Research Unit IV
Contact Information: Masatoshi Kodera(kodera.masatoshi@jaxa.jp)
Members: Masaaki Fukui, Chihiro Fujio, Taku Inoue, Masatoshi Kodera, Tomoaki Nara, Hideaki Ogawa, Masaharu Takahashi

Abstract

High speed point to point (P2P) space transportation system seems to be promising in the community of future private space businesses. In this project, we aim at completing hydrogen fueled hypersonic engine technology, especially, control techniques changing two cycles between turbojet and scramjet engines for the combined cycle engines and transferring the technology to the private business players. As a result, we will contribute to realize the above mentioned space transportation system.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

When hydrogen fueled hypersonic engines are used for space transportation systems, It is necessary to confirm the engine working characteristics in the wide range of flight speeds while a vehicle with the engine is accelerating and ascending. However, it is impossible to simulate all the flight conditions by ground experiment facilities so that the use of CFD is indispensable to compensate for the experiment. In addition, considering the change of engine cycles for the turbine based combined cycle engine, it is necessary to investigate not only each the engine performance, but also the entire engine system. For this purpose, the application of advanced optimization algorithms using CFD database is effective. Therefore, it is indispensable to utilize JSS since numerous computational resources are required to handle those subjects efficiently.

Achievements of the Year

RANS simulations have been conducted in a rectangular combustor with an angled hole injector using a commercial CFD solver CFD++ to investigate optimum interaction of shock wave and injection jet for efficient fuel mixing enhancement. Parametric study has been performed varying location of shock wave interaction, injection pressure, and injection angle. It has been found that effective mixing enhancement is achieved when air enters from the side of the jet through the recirculation region downstream of the jet caused by the incidence of a shock wave, as shown in Fig. 1.

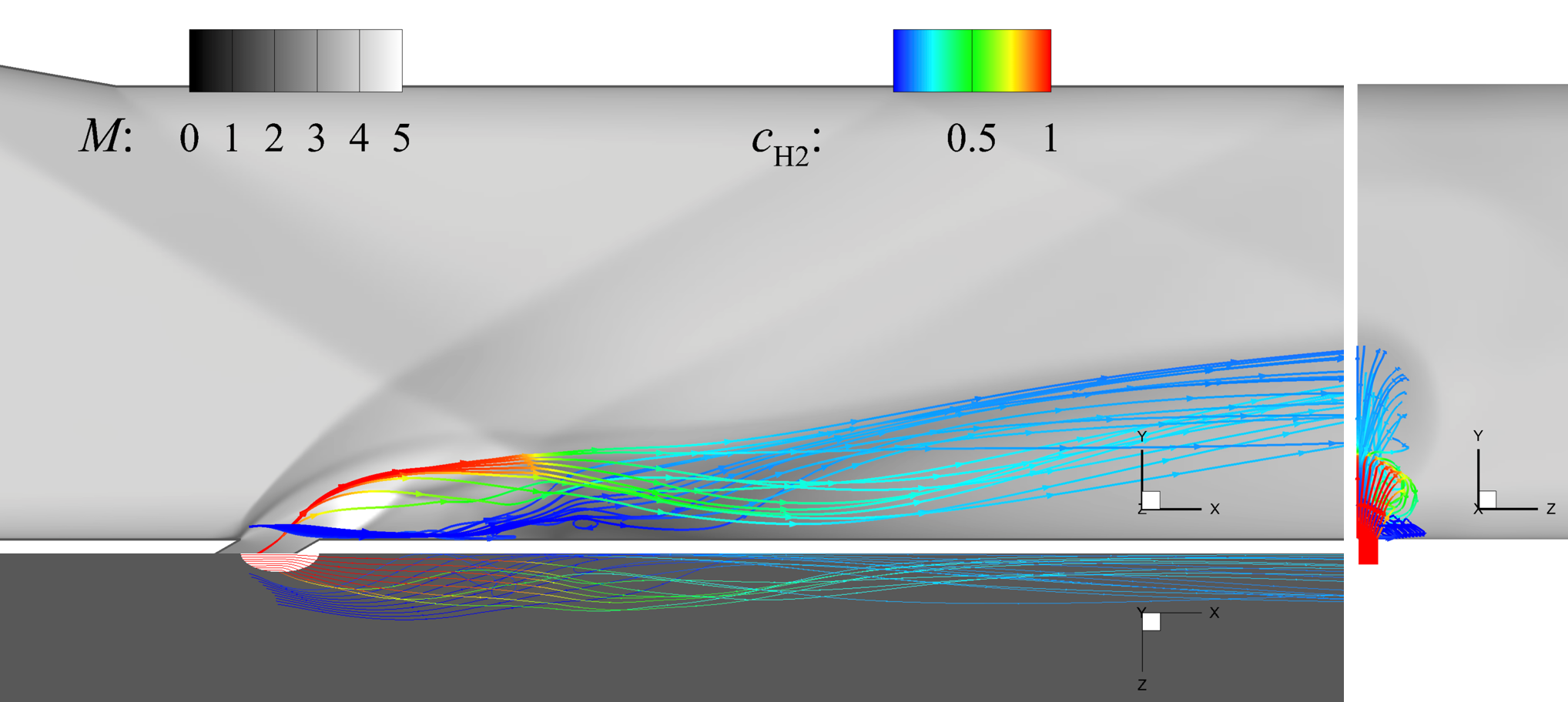

Fig.1: Shock structures and streamlines around injector

Publications

N/A

Usage of JSS

Computational Information

Process Parallelization Methods: MPI
Thread Parallelization Methods: OpenMP
Number of Processes: 8 - 16
Elapsed Time per Case: 24 Hour(s)

JSS3 Resources Used

Fraction of Usage in Total Resources*1(%): 1.05

Details

Please refer to System Configuration of JSS3 for the system configuration and major specifications of JSS3.

Computational Resources
System Name	CPU Resources Used (Core x Hours)	Fraction of Usage*2(%)
TOKI-SORA	1596128.32	0.07
TOKI-ST	7012591.19	7.20
TOKI-GP	0.00	0.00
TOKI-XM	0.00	0.00
TOKI-LM	0.00	0.00
TOKI-TST	0.00	0.00
TOKI-TGP	0.00	0.00
TOKI-TLM	0.00	0.00

File System Resources
File System Name	Storage Assigned (GiB)	Fraction of Usage*2(%)
/home	95.36	0.06
/data and /data2	32420.36	0.16
/ssd	0.00	0.00

Archiver Resources
Archiver Name	Storage Used (TiB)	Fraction of Usage*2(%)
J-SPACE	4.58	0.01

*1: Fraction of Usage in Total Resources: Weighted average of three resource types (Computing, File System, and Archiver).

*2: Fraction of Usage：Percentage of usage relative to each resource used in one year.
