Study of the Effect of Boundary Layer Ingestion (BLI) on Aircraft Propulsion

JAXA Supercomputer System Annual Report February 2021-January 2022

Report Number: R21EDA201P55

Subject Category: Aeronautical Technology

Responsible Representative: Keiichi OKAI, Associate Senior Researcher, Environmentally Sustainable Engine Team, Aviation Environmental Sustainability Innovation Hub, Aviation Technology Directorate
Contact Information: Keiichi OKAI(okai.keiichi@jaxa.jp)
Members: Keiichi Okai, Kazuhisa Amemiya, Tomoya Kogirima, Junichi Kazawa, Akiyoshi Masaki

Abstract

In this study, evaluation of unsteady aerodynamics in aircraft fan under strongly distorted inflow condition simulating airframe/engine integration configuration with Boundary Layer Ingestion (BLI) benefit suited for future electric aircraft. Under these BLI conditions, aircraft fan suffers almost all the flight path strongly distorted inflow conditions, the present study investigates the fan flows in detail through the numerical simulations.

Reference URL

N/A

Reasons and benefits of using JAXA Supercomputer System

The srudy deals with fan aerodynamic flows under inlet conditions of asymmetric distorsion inflow. For the purpose, high-resolution and full-annula duct flow analysis is necessary with the use of JSS2 supercomputer.

Achievements of the Year

Fan rotor unsteady aerodynamic flow analysis was conducted under the inflow distortion condition simulating airframe/engine integration configuration suited for future electric aircraft. Figure 1 shows baseline and forward-swept rotor-blades. Figure 2 shows entropy distribution in peak efficiency point at 96% span with baseline (upper side) and swept (lower side) rotor-blade shapes under BLI condition. The figure indicates improvement due to change of blade shape in the distribution of entropy rise in the same distorted inflow condition. Figure 3 shows Mach number distribution for the same condition as Fig. 2. The figure indicates that modified flow with blade shape change contributes to loss reduction seen in Fig. 2

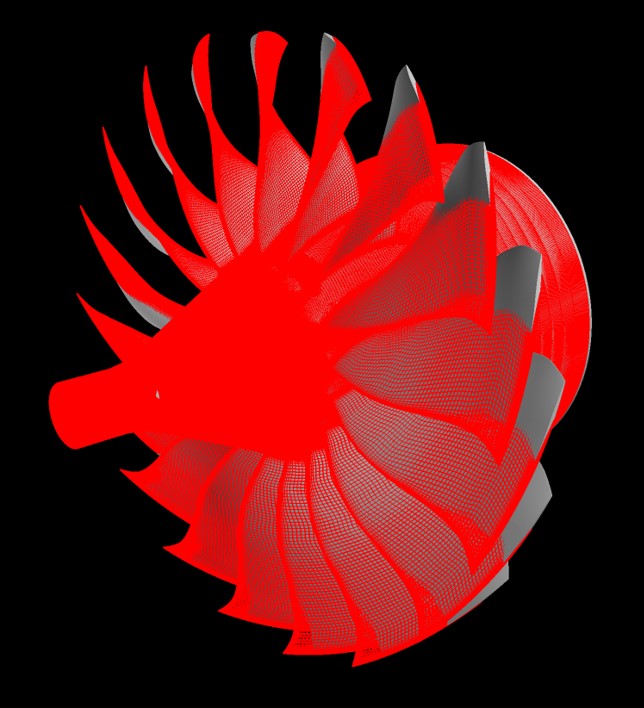

Fig.1: Figure 1 Rotor-blade shape (baseline and swept)

Fig.2: Figure 2 Entropy distribution at 96% span (Baseline (upper side), Swept (lower side))

Fig.3: Figure 3 Mach number distribution at 96% span (Baseline (upper side), Swept (lower side))
